Bridge Cam Gauge Welding Fillet Throat Gage Bevel Angle Inch/mm Stainless Steel Item NO.: B074T83DQD

Write a Review Sold (63)

US$ 14.70

Quantity:: Stock ( 9999936 )

Shipping Cost:: Estimate Shipping Cost

NB: Please read list details, any questions on application & compatibility please contact us without hesitation!!

Product Name	Bridge Cam Gauge Welding Fillet Throat Gage Bevel Angle Inch/mm Stainless Steel
Item NO.	B074T83DQD
Weight	0.14 kg = 0.3086 lb = 4.9384 oz
Category	Inspection Tool > Angle Gauge
Brand	WeldingStop
Creation Time	2020-09-03

UPC:694161265158

Brand Name:WeldingStop

More Details:

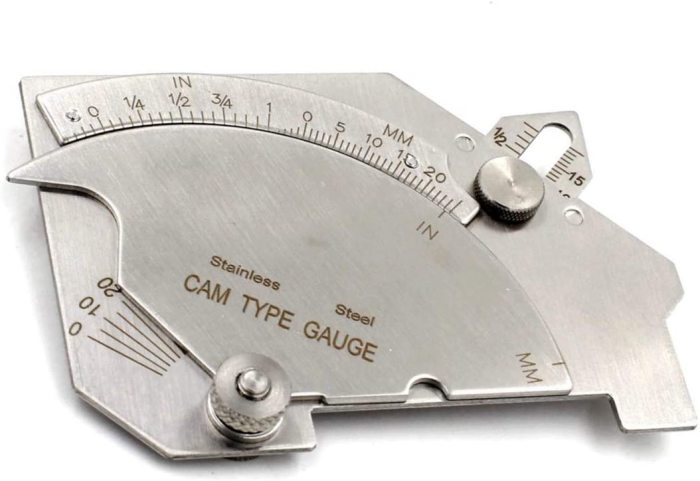

● Product Name: Bridge CAM Gauge
● Material: Stainless Steel
● Engraving Type: Laser Engraving
● Measurement Standard: Standard & Metric Reading

Measure Method and Range:

Metric
1.Seam Reinforcement:0-25 mm
2.Fillet Leg Length:0-25 mm
3.Fillet Throat Size:0-20mm
4.Undercut / Pit Depth:0-2mm
5.Outside Misalignment:0-25mm
6.Bevel Angle:0-60°
Inch
1.Seam Reinforcement: 0-1''
2.Fillet Leg Length: 0-1''
3.Fillet Throat Size: 0-3/4''
4.Undercut / Pit Depth: 0-1/8''
5.Outside Misalignment: 0-1''
6.Bevel Angle:0-60°

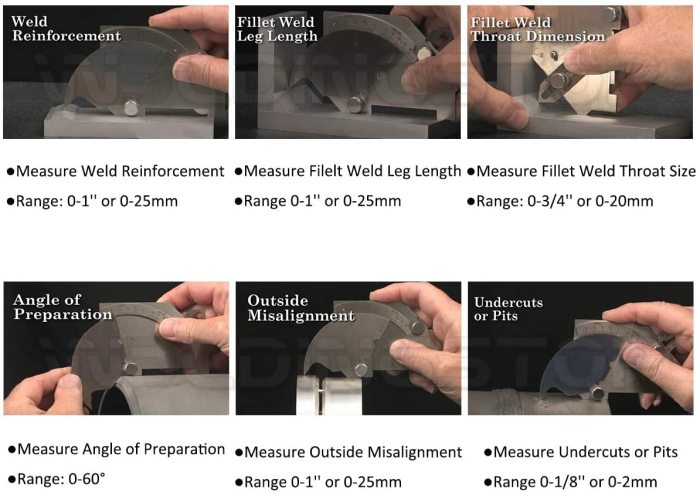

More Features:

✔Measure Weld Reinforcement
✔Measure Fillet Weld Leg Length
✔Measure Fittel Weld Throat Dimension
✔Measure Undercuts or Pits
✔Measure Angle of Preparation
✔Measure Outside Misalignment

List Included:

1 Piece x Bridge Welding Gauge WSG-01006

About Shipping:

These products are made by WS and shipped from China.
If you want to receive the package ASAP, please choose Expedited Shipping.
